Dual SPDT switch with 1GHz bandwidth, featuring low capacitance and low charge injection. Operates with dual supply voltages from ±5V to ±15V, up to a maximum of ±16.5V. This integrated circuit offers 2 channels, each configured as a Single Pole Double Throw (SPDT) switch. Housed in a compact LFCSP EP package with dimensions of 3mm x 2.75mm x 0.95mm, it supports parallel interface and is RoHS compliant.
PackageLFCSP EP
Current230uA
Power3.5mW
Quick Jump:
Technical Specifications
Analog Devices ADG1236YCPZ-500RL7 technical specifications.
General
-3db Bandwidth
1GHz
Bandwidth
1GHz
Package/Case
LFCSP EP
Dual Supply Voltage
15V
Height
0.95mm
Interface
Parallel
Lead Free
Contains Lead
Length
3mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
3.5mW
Max Supply Current
230uA
Max Supply Voltage
16.5V
Min Supply Voltage
5V
Number of Bits
2
Number of Channels
2
Number of Circuits
2
Number of Inputs
2
Number of Outputs
4
Operating Supply Voltage
12V
Package Quantity
500
Packaging
Tape and Reel
Power Dissipation
3.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
230uA
Supply Type
Single, Dual
Test Frequency
1MHz
Throw Configuration
SPDT
Turn-Off Delay Time
0.00019ms
Turn-On Delay Time
0.00015ms
Width
2.75mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1236YCPZ-500RL7 Datasheet
Download the complete datasheet for Analog Devices ADG1236YCPZ-500RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

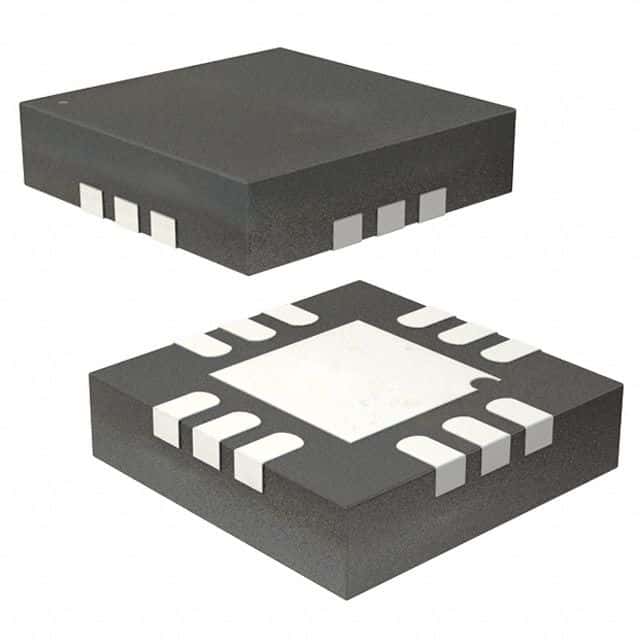

Product Images
