Dual SPDT switch offering 1GHz bandwidth and 475Ω on-state resistance. Features low capacitance and low charge injection, operating with dual supplies from ±5V to ±15V. This iCMOS® device supports a maximum dual supply voltage of ±16.5V and a maximum operating temperature of 125°C. Packaged in LFCSP EP, it is supplied on tape and reel.
PackageLFCSP EP
Power3.5mW
Quick Jump:
Technical Specifications
Analog Devices ADG1236YCPZ-REEL7 technical specifications.
General
| -3db Bandwidth | 1GHz |
| Bandwidth | 1GHz |
| Package/Case | LFCSP EP |
| Dual Supply Voltage | 15V |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.5mW |
| Max Supply Current | 230uA |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 5V |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| On-State Resistance | 475R |
| Operating Supply Current | 170uA |
| Operating Supply Voltage | 12V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.5mW |
| RoHS Compliant | Yes |
| Series | iCMOS® |
| Supply Type | Single, Dual |
| Test Frequency | 1MHz |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG1236YCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG1236YCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

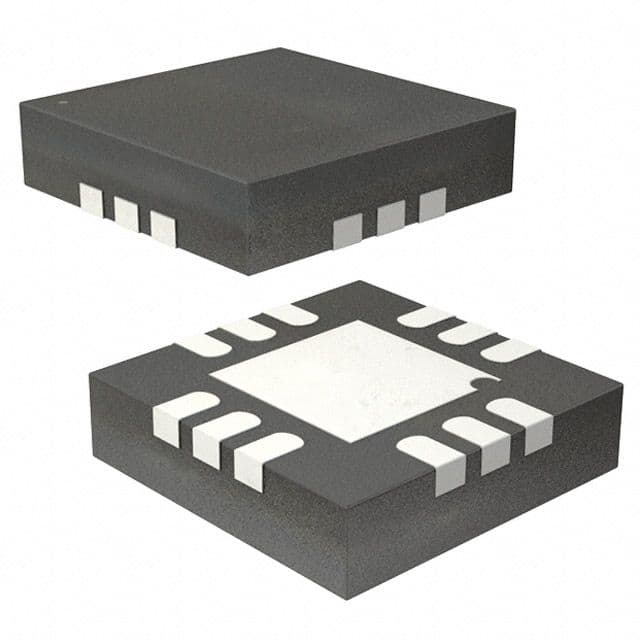

Product Images
