8-channel, single-pole, single-throw (SPST) iCMOS multiplexer featuring 4 Ω on-resistance and a 60MHz bandwidth. Operates with dual supply voltages from ±4.5V to ±16.5V, or single supply from 5V to 16.5V. This integrated circuit offers 8 parallel inputs and 1 output, with a maximum power dissipation of 4.9mW and a supply current of 1µA. Packaged in a TSSOP with dimensions of 5mm (L) x 4.4mm (W) x 1.05mm (H), it functions across an operating temperature range of -40°C to 125°C.
PackageTSSOP
Current1uA
Power4.9mW
Quick Jump:
Technical Specifications
Analog Devices ADG1408YRUZ technical specifications.
General
-3db Bandwidth
60MHz
Bandwidth
60MHz
Package/Case
TSSOP
Dual Supply Voltage
5V
Height
1.05mm
Interface
Parallel
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
4.9mW
Max Supply Voltage
16.5V
Min Supply Voltage
5V
Number of Bits
8
Number of Channels
1
Number of Circuits
1
Number of Inputs
8
Number of Outputs
1
Operating Supply Voltage
12V
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
4.9mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1uA
Throw Configuration
SPST
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1408YRUZ Datasheet
Download the complete datasheet for Analog Devices ADG1408YRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

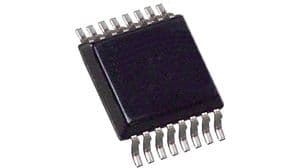

Product Images
