A 4:1 multiplexer IC featuring 1Ω typical on-resistance and a 19MHz bandwidth. This component operates with dual supply voltages ranging from 3.3V to 8V, and single supply voltages up to 16V. It offers a parallel interface and is housed in a VQFN package. The device supports a wide operating temperature range of -40°C to 125°C and has a maximum power dissipation of 2.8mW.
PackageVQFN
Current230uA
Power2.8mW
Quick Jump:
Technical Specifications
Analog Devices ADG1604BCPZ-REEL7 technical specifications.
General
-3db Bandwidth
19MHz
Bandwidth
19MHz
Package/Case
VQFN
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.8mW
Max Supply Voltage
16V
Min Supply Voltage
3.3V
Number of Channels
4
Number of Circuits
1
Number of Inputs
4
Number of Outputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.8mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
230uA
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1604BCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG1604BCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

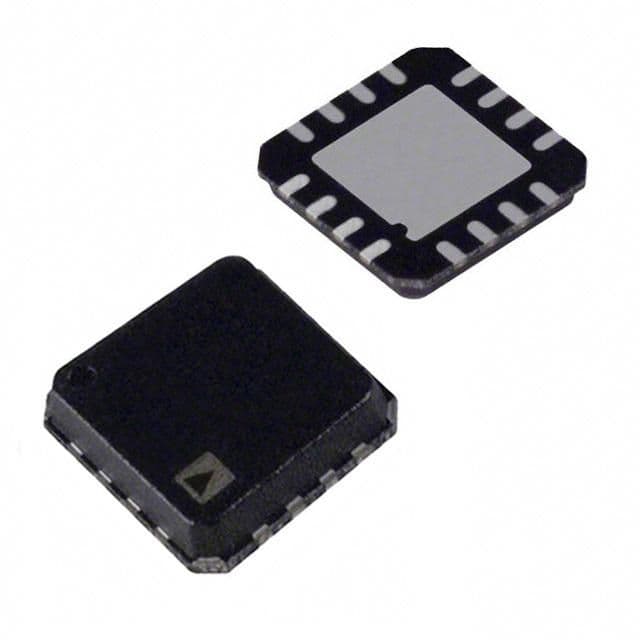

Product Images
