This 4-channel multiplexer IC features low on-resistance of 4.5 Ω and a 71MHz bandwidth. It supports dual supply voltages from ±3.3V to ±8V and single supply operation up to 16V. The device offers 8 inputs and 2 outputs, with a parallel interface and a compact 1.2mm height TSSOP package. Operating across a -40°C to 125°C temperature range, it has a typical power dissipation of 2.7mW.
PackageTSSOP
Current225uA
Power2.7mW
Quick Jump:
Technical Specifications
Analog Devices ADG1609BRUZ technical specifications.
General
-3db Bandwidth
71MHz
Bandwidth
71MHz
Package/Case
TSSOP
Drain to Source Resistance
8R
Dual Supply Voltage
5V
Height
1.2mm
Interface
Parallel
Lead Free
Contains Lead
Length
5.1mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.7mW
Max Supply Voltage
16V
Min Supply Voltage
3.3V
Number of Channels
1
Number of Circuits
2
Number of Inputs
8
Number of Outputs
2
Operating Supply Voltage
12V
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
2.7mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
225uA
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1609BRUZ Datasheet
Download the complete datasheet for Analog Devices ADG1609BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

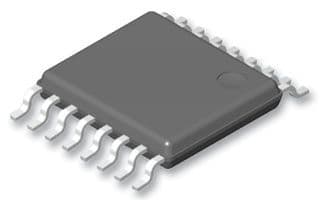

Product Images
