Quad SPST switch IC featuring 1Ω typical on-resistance and a 38MHz bandwidth. Operates with dual supply voltages from ±3.3V to ±8V, or single supply from +3.3V to +16V. Offers 4 channels with parallel interface, suitable for applications requiring signal routing. Packaged in a 4.5mm x 5.1mm x 1.2mm TSSOP, this RoHS compliant component operates from -40°C to +125°C.
PackageTSSOP
Power5.8mW
Quick Jump:
Technical Specifications
Analog Devices ADG1611BRUZ technical specifications.
General
-3db Bandwidth
38MHz
Bandwidth
38MHz
Package/Case
TSSOP
Dual Supply Voltage
5V
Height
1.2mm
Interface
Parallel
Lead Free
Contains Lead
Length
5.1mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
5.8mW
Max Supply Current
480uA
Max Supply Voltage
16V
Min Supply Voltage
3.3V
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
5.8mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Test Frequency
1MHz
Turn-Off Delay Time
105ns
Turn-On Delay Time
165ns
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1611BRUZ Datasheet
Download the complete datasheet for Analog Devices ADG1611BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

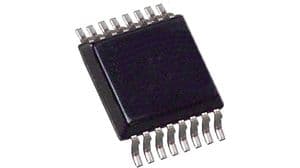

Product Images
