Quad SPST Switch IC with 1Ω typical on-resistance, supporting ±5V, +12V, +5V, and +3.3V supplies. Features a 38MHz bandwidth and parallel interface. Operates across a -40°C to +125°C temperature range with a maximum supply voltage of 16V. Packaged in a 4.5mm x 5.1mm x 1.2mm TSSOP.
PackageTSSOP
Power5.8mW
Quick Jump:
Technical Specifications
Analog Devices ADG1612BRUZ technical specifications.
General
-3db Bandwidth
38MHz
Bandwidth
38MHz
Package/Case
TSSOP
Height
1.2mm
Interface
Parallel
Lead Free
Contains Lead
Length
5.1mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
5.8mW
Max Supply Current
480uA
Max Supply Voltage
16V
Min Supply Voltage
3.3V
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
5.8mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Test Frequency
1MHz
Turn-Off Delay Time
75ns
Turn-On Delay Time
125ns
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1612BRUZ Datasheet
Download the complete datasheet for Analog Devices ADG1612BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

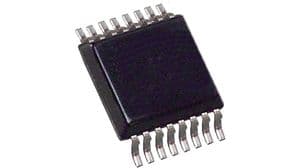

Product Images
