Dual SPDT switches featuring 1 Ω typical on resistance, suitable for ±5 V, +12 V, +5 V, and +3.3 V dual supply operation. Offers a -3dB bandwidth of 27 MHz and operates across a wide temperature range from -40°C to +125°C. This logic IC is housed in a TSSOP package with a parallel interface, supporting single and dual supply types. Maximum power dissipation is 4.5 mW with a maximum supply current of 360 µA.
PackageTSSOP
Power4.5mW
Quick Jump:
Technical Specifications
Analog Devices ADG1636BRUZ technical specifications.
General
-3db Bandwidth
27MHz
Bandwidth
27MHz
Package/Case
TSSOP
Dual Supply Voltage
5V
Height
1.2mm
Interface
Parallel
Lead Free
Contains Lead
Length
5.1mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
4.5mW
Max Supply Current
360uA
Max Supply Voltage
16V
Min Supply Voltage
3.3V
Number of Channels
2
Number of Circuits
2
Number of Inputs
2
Number of Outputs
4
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
4.5mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Test Frequency
1MHz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG1636BRUZ Datasheet
Download the complete datasheet for Analog Devices ADG1636BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

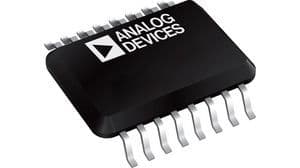

Product Images
