Technical Specifications
Analog Devices ADG3233BRJ-REEL technical specifications.
General
Package/Case
SOT-23-8
Channel Type
Bidirectional
Contact Plating
Tin, Lead
Data Rate
10Mbps
High Level Output Current
-8mA
Lead Free
Contains Lead
Logic Function
Translator
Low Level Output Current
8mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Number of Bits
1
Number of Circuits
1
Package Quantity
10000
Packaging
Tape and Reel
Propagation Delay
3.5ns
Quiescent Current
2uA
RoHS Compliant
No
Supply Current
2uA
Turn-On Delay Time
10.5ns
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADG3233BRJ-REEL Datasheet
Download the complete datasheet for Analog Devices ADG3233BRJ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

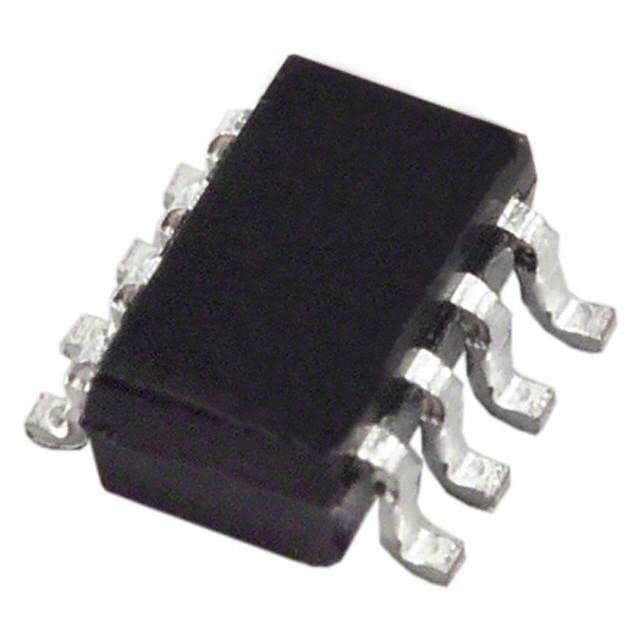

Product Images
