Analog Devices
ADG3246BCP
IC 10-BIT DRIVER, TRUE OUTPUT, QCC24, 4 X 4 MM, MO-220-VGGD-2, CSP-24, Bus Driver/Transceiver
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADG3246BCP technical specifications.
General
Package/Case
LFCSP EP
High Level Output Current
-25mA
Low Level Output Current
25mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Bits
10
Number of Elements
1
Packaging
Rail/Tube
Propagation Delay
4.8ns
Quiescent Current
1.2mA
RoHS Compliant
No
Technology
CMOS
Throw Configuration
SPST
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADG3246BCP Datasheet
Download the complete datasheet for Analog Devices ADG3246BCP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

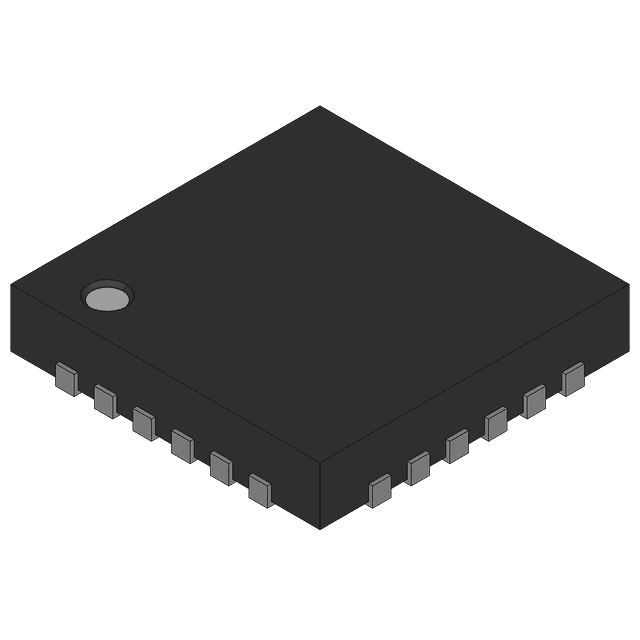

Product Images
