Technical Specifications
Analog Devices ADG3247BRU technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Lead
High Level Output Current
-25mA
Independent Circuits
2
Lead Free
Contains Lead
Low Level Output Current
25mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Number of Bits
16
Number of Elements
2
Operating Supply Current
1uA
Packaging
Rail/Tube
Propagation Delay
225ps
Quiescent Current
650uA
RoHS Compliant
No
Supply Type
Single
Technology
CMOS
Throw Configuration
SPST
Turn-On Delay Time
4.8ns
Weight
0.007189oz
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADG3247BRU Datasheet
Download the complete datasheet for Analog Devices ADG3247BRU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

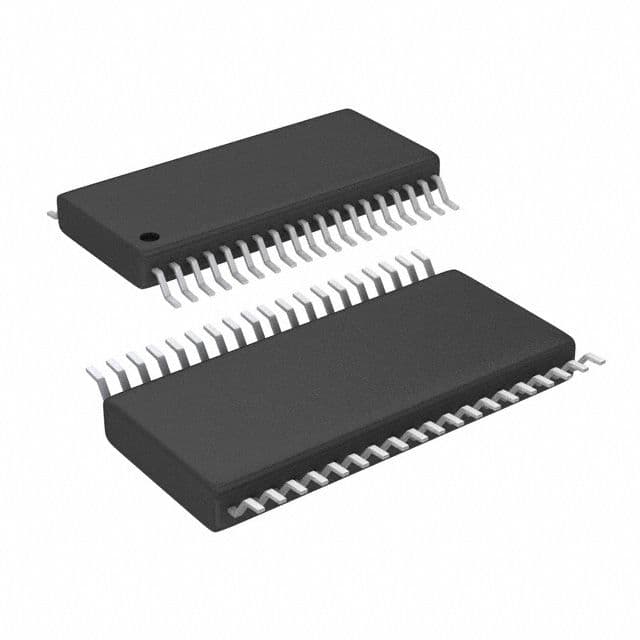

Product Images
