ADG3249BRJ-R2

Datasheet

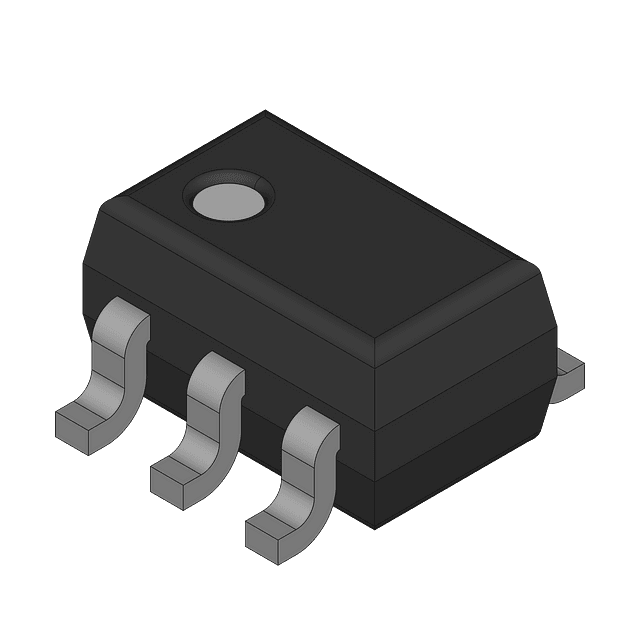

2:1 Multiplexer/Demultiplexer Bus Switch, 2.3-3.6V, CMOS, SOT-23-8

Analog Devices

ADG3249BRJ-R2

Name: ADG3249BRJ-R2 Analog Devices
Brand: Analog Devices
SKU: ADG3249BRJ-R2

2:1 Multiplexer/Demultiplexer Bus Switch, 2.3-3.6V, CMOS, SOT-23-8

CMOS 2:1 multiplexer/demultiplexer bus switch operating from a 2.3V to 3.6V single supply. Features 12Ω on-state resistance and 225ps propagation delay. Supports 25mA high-level and 25mA low-level output current. Housed in an 8-lead SOT-23 package with tin/lead contact plating. Maximum operating temperature is 85°C.

PackageSOT-23-8

Quick Jump:

Technical Specifications

Analog Devices ADG3249BRJ-R2 technical specifications.

General

Package/Case	SOT-23-8
Contact Plating	Tin, Lead
High Level Output Current	-25mA
Lead Free	Contains Lead
Logic Function	Multiplexer, Demultiplexer
Low Level Output Current	25mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Current	200uA
Max Supply Voltage	3.6V
Min Supply Voltage	2.3V
Number of Bits	2
Number of Channels	1
Number of Elements	1
On-State Resistance	12R
Package Quantity	250
Packaging	Tape and Reel
Propagation Delay	225ps
Quiescent Current	100uA
RoHS Compliant	No
Supply Type	Single
Technology	CMOS
Throw Configuration	DPST
Turn-On Delay Time	8.2ns
