Analog Devices
ADG3300BRUZ-REEL7
Low Voltage 1.15 V to 5.5 V, 8-Channel Bidirectional Logic Level Translator
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices ADG3300BRUZ-REEL7 technical specifications.
General
Package/Case
TSSOP
Channel Type
Bidirectional
Data Rate
50Mbps
High Level Output Current
-20uA
Lead Free
Contains Lead
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Number of Circuits
1
Operating Supply Current
5uA
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
5ns
Quiescent Current
270nA
RoHS Compliant
Yes
Turn-On Delay Time
35ns
Weight
0.006737oz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG3300BRUZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG3300BRUZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

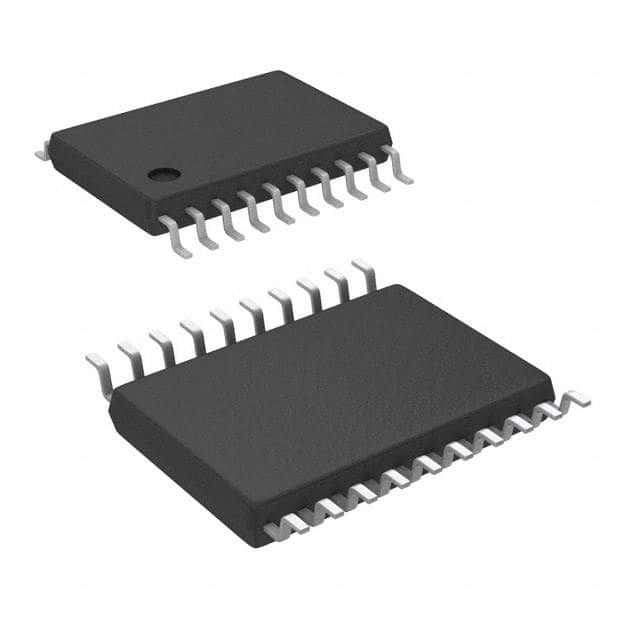

Product Images
