Analog Devices
ADG3308BCPZ-REEL
Low Voltage, 1.15 V to 5.5 V, 8-Channel Bidirectional Logic Level Translator
PackageLFCSP EP
Current1uA
Quick Jump:
Technical Specifications
Analog Devices ADG3308BCPZ-REEL technical specifications.
General
Package/Case
LFCSP EP
Channel Type
Bidirectional
Contact Plating
Tin, Matte
Data Rate
60Mbps
High Level Output Current
-20uA
Lead Free
Contains Lead
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Number of Circuits
1
Output Type
3-STATE
Package Quantity
5000
Packaging
Tape and Reel
Propagation Delay
5ns
Quiescent Current
270nA
RoHS Compliant
Yes
Supply Current
1uA
Technology
CMOS
Turn-On Delay Time
35ns
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG3308BCPZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADG3308BCPZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

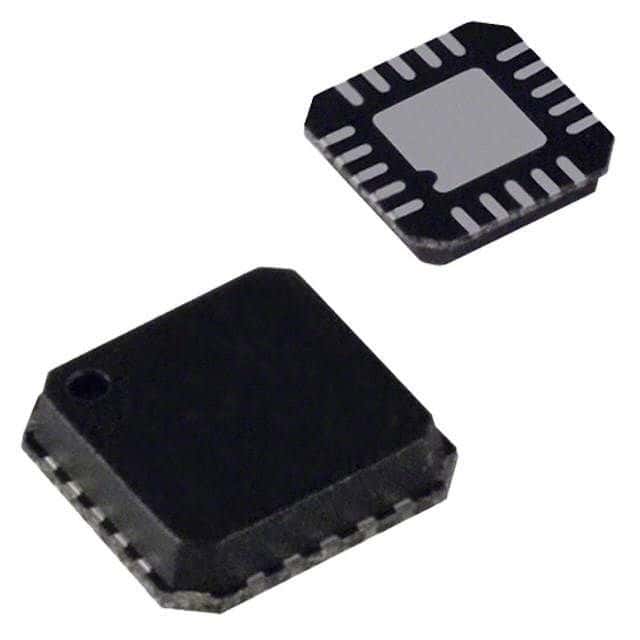

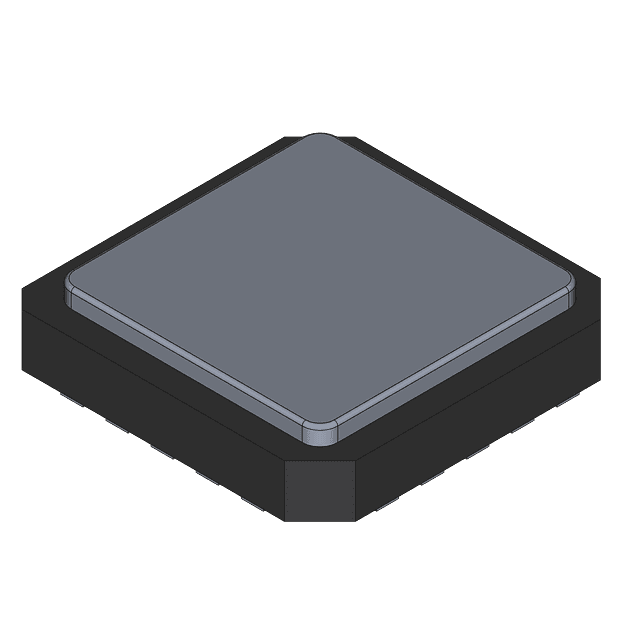

Product Images
