8-channel bidirectional logic level translator supporting 1.15 V to 5.5 V supply voltages. Features CMOS technology with a 60 Mbps data rate and 5 ns propagation delay. Offers 3-state output type and operates from -40°C to 85°C. Includes 8 inputs with bidirectional channel type and a quiescent current of 270 nA. Packaged in LFCSP EP on tape and reel.
PackageLFCSP EP
Current1uA
Quick Jump:
Technical Specifications
Analog Devices ADG3308BCPZ-REEL7 technical specifications.
General
Package/Case
LFCSP EP
Channel Type
Bidirectional
Data Rate
60Mbps
High Level Output Current
-20uA
Lead Free
Contains Lead
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.15V
Number of Circuits
1
Number of Inputs
8
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
5ns
Quiescent Current
270nA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1uA
Technology
CMOS
Turn-On Delay Time
35ns
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG3308BCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG3308BCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

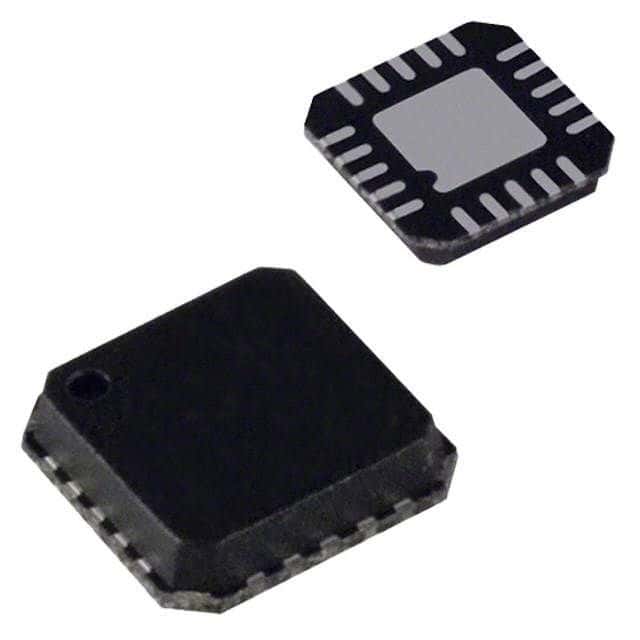

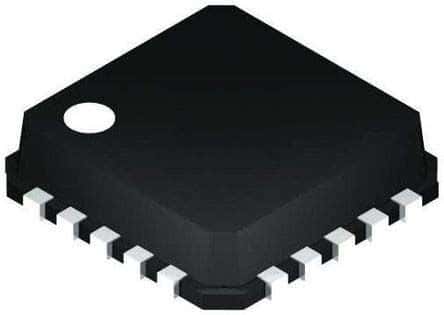

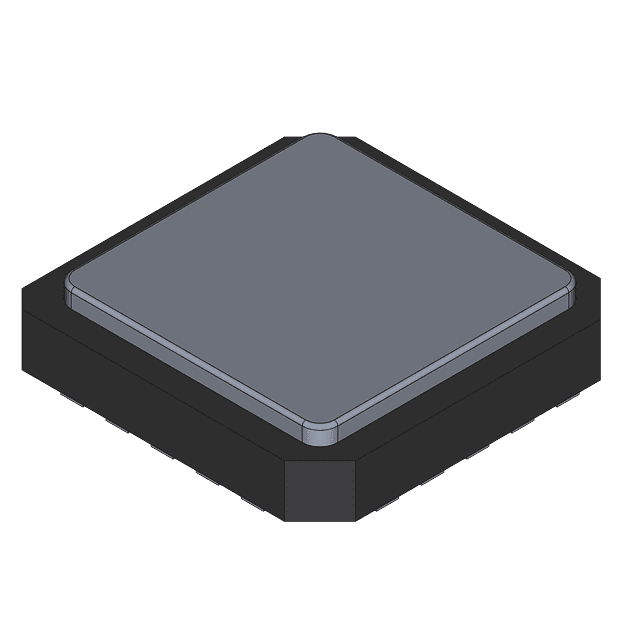

Product Images
