LC²MOS SPST switch featuring 8Ω on-state resistance. This integrated circuit offers 4 channels, each with 4 circuits, 4 inputs, and 4 outputs. It operates with single or dual supply voltages ranging from 5V to 15V, with a maximum supply voltage of 12V. The device supports a parallel interface and is designed for surface mounting in a SOIC package. Operating temperature range is -40°C to 85°C.
PackageSOIC
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
Analog Devices ADG451BR-REEL7 technical specifications.
General
Package/Case
SOIC
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
17.5uW
Max Supply Current
500nA
Max Supply Voltage
12V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Bits
4
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
On-State Resistance
8R
Operating Supply Current
100pA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
600mW
RoHS Compliant
No
Series
LC²MOS
Supply Type
Single, Dual
Throw Configuration
SPST
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADG451BR-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG451BR-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

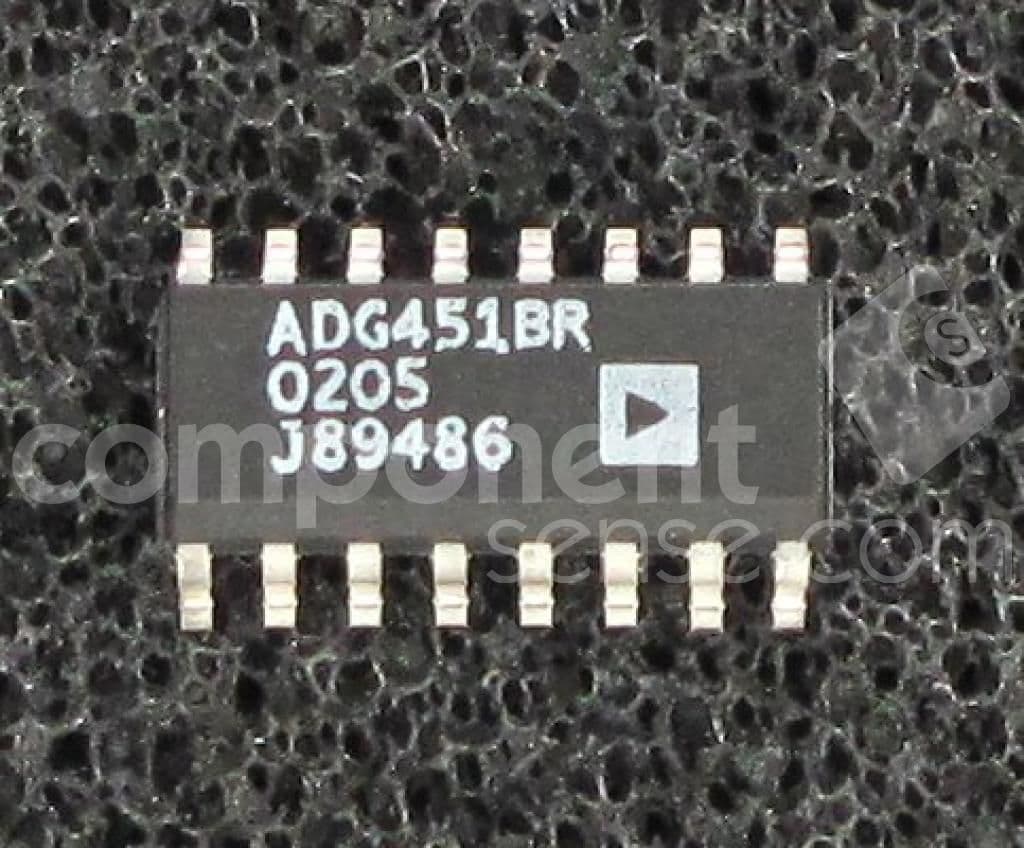

Product Images
