CMOS 8-channel analog multiplexer featuring a single circuit with 8 inputs and 1 output. Operates with dual supply voltages from 10.8V to 16.5V, and a single supply voltage range of 10.8V to 16.5V. Offers a high level output current of 20mA and a maximum power dissipation of 470mW. This device boasts a wide operating temperature range from -55°C to 125°C and a propagation delay of 300ns. Packaged in a 25-piece rail/tube configuration, it is RoHS compliant.
PackageN
Current1.5mA
Power27mW
Quick Jump:
Technical Specifications
Analog Devices ADG508AKNZ technical specifications.
General
Package/Case
N
Dual Supply Voltage
15V
Height
3.3mm
High Level Output Current
20mA
Interface
Parallel
Lead Free
Contains Lead
Length
20.07mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
10.8V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
470mW
Max Supply Current
1.5mA
Max Supply Voltage
16.5V
Min Supply Voltage
10.8V
Number of Channels
8
Number of Circuits
1
Number of Inputs
8
Number of Outputs
1
Operating Supply Current
600uA
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
27mW
Propagation Delay
300ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.5mA
Throw Configuration
DPST
Turn-Off Delay Time
200ns
Turn-On Delay Time
200ns
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG508AKNZ Datasheet
Download the complete datasheet for Analog Devices ADG508AKNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

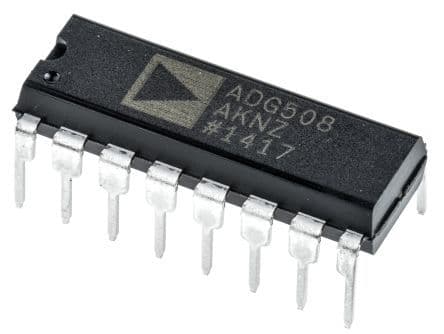

Product Images
