Technical Specifications
Analog Devices ADG512TQ technical specifications.
General
| Package/Case | Q |
| Contact Plating | Tin, Lead |
| Dual Supply Voltage | 5V |
| High Level Output Current | 30mA |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 10uW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| RoHS Compliant | No |
| Supply Type | Single, Dual |
| Throw Configuration | SPST |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices ADG512TQ Datasheet
Download the complete datasheet for Analog Devices ADG512TQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

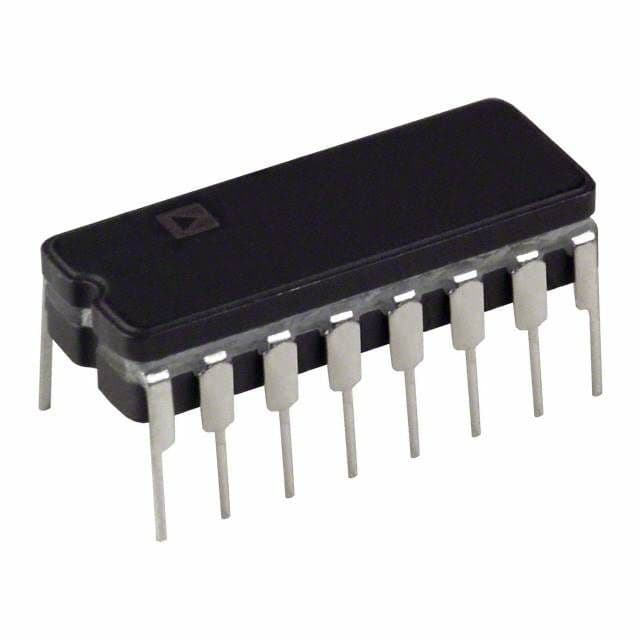

Product Images
