Quad SPST switches featuring 460MHz bandwidth and -6dB insertion loss. Operates with dual supply voltages from 9V to 22V, with a maximum supply voltage of 40V. Offers latch-up proof performance and an on-state resistance of 170 Ohms. Packaged in LFCSP EP, this component supports parallel interface and operates across a temperature range of -40°C to 125°C.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADG5213BCPZ-RL7 technical specifications.
General
-3db Bandwidth
460MHz
Bandwidth
460MHz
Package/Case
LFCSP EP
Dual Supply Voltage
15V
Insertion Loss
-6dB
Interface
Parallel
Lead Free
Contains Lead
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
55uA
Max Supply Voltage
40V
Min Supply Voltage
9V
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
On-State Resistance
170R
Operating Supply Current
80uA
Package Quantity
1500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Test Frequency
1MHz
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG5213BCPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADG5213BCPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

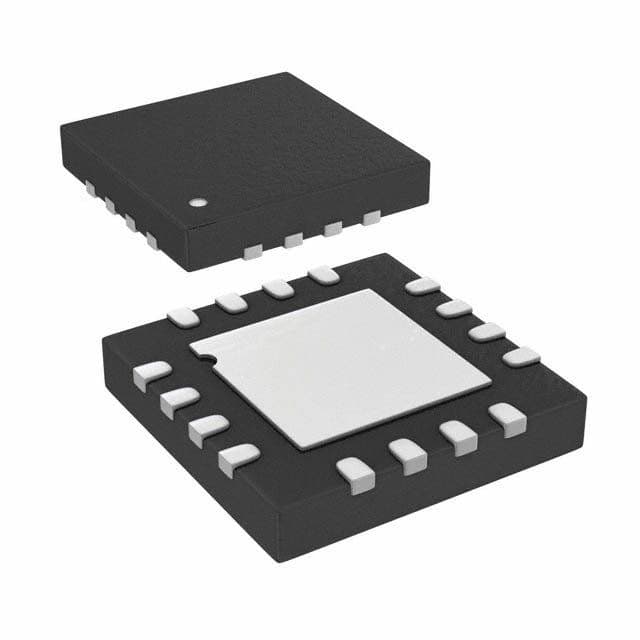

Product Images
