PackageLFCSP EP
Power2.9mW
Quick Jump:
Technical Specifications
Analog Devices ADG5409BCPZ-REEL7 technical specifications.
General
| -3db Bandwidth | 50MHz |
| Bandwidth | 88MHz |
| Package/Case | LFCSP EP |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 9V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.9mW |
| Max Supply Current | 80pA |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 9V |
| Number of Channels | 4 |
| Number of Circuits | 2 |
| Number of Inputs | 8 |
| Number of Outputs | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.9mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG5409BCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG5409BCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

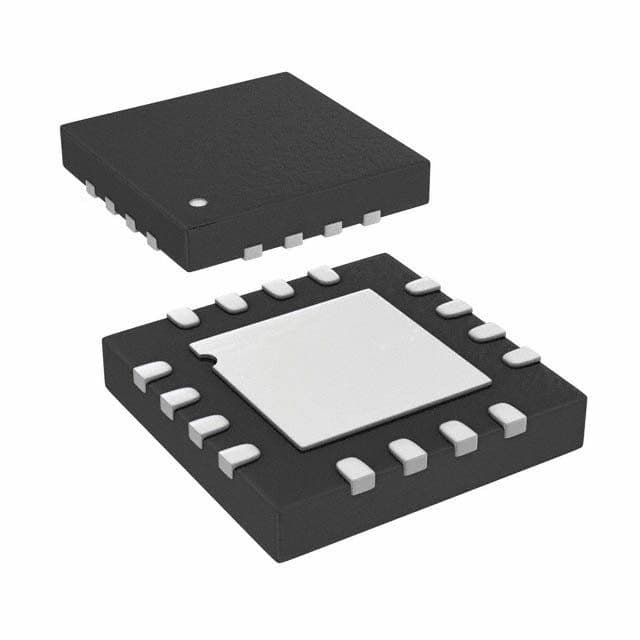

Product Images
