32-channel analog multiplexer featuring low on-resistance of 5.5 Ohms and a 18 MHz -3dB bandwidth. Operates with single or dual supplies from 1.8 V to 5.5 V, supporting ±2.5 V dual supply. Serial interface for control, with a maximum operating temperature of 85°C. Packaged in LFCSP EP with tin-matte contact plating, supplied on tape and reel.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADG731BCPZ-REEL7 technical specifications.
General
-3db Bandwidth
18MHz
Bandwidth
18MHz
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Dual Supply Voltage
2.5V
High Level Output Current
30mA
Interface
Serial
Lead Free
Contains Lead
Logic Function
Multiplexer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100uW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of Channels
32
Number of Circuits
1
Number of Inputs
32
Number of Outputs
1
On-State Resistance
5.5R
Operating Supply Current
10uA
Operating Supply Voltage
5V
Package Quantity
750
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Type
Single, Dual
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG731BCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG731BCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

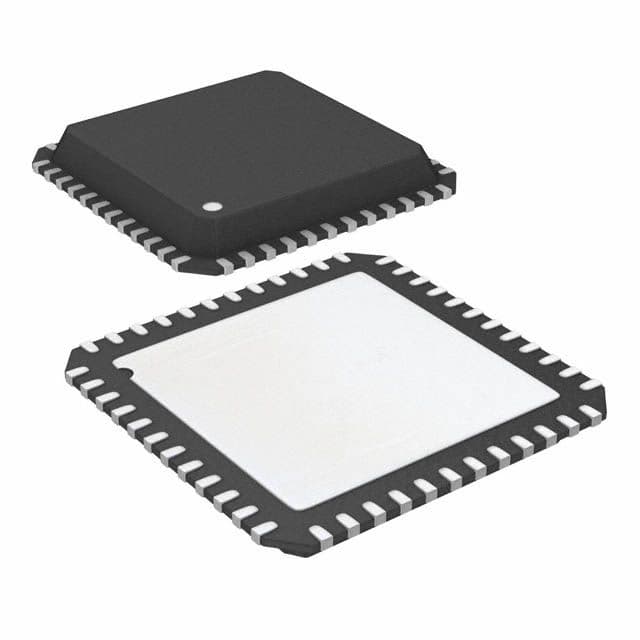

Product Images
