Dual 2:1 multiplexer/demultiplexer IC supporting USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) data rates. Features a 630MHz -3dB bandwidth and operates with a supply voltage range of 0V to 3.6V. This low-power CMOS component offers 2 channels and 2 circuits, with a maximum supply current of 6nA. Packaged in tape and reel for high-volume applications, it operates across a temperature range of -40°C to 85°C.
Quick Jump:
Technical Specifications
Analog Devices ADG772BCPZ-1REEL technical specifications.
General
-3db Bandwidth
630MHz
Bandwidth
630MHz
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
6nA
Max Supply Voltage
3.6V
Min Supply Voltage
0V
Number of Channels
2
Number of Circuits
2
Operating Supply Voltage
3.6V
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Test Frequency
1MHz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG772BCPZ-1REEL Datasheet
Download the complete datasheet for Analog Devices ADG772BCPZ-1REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

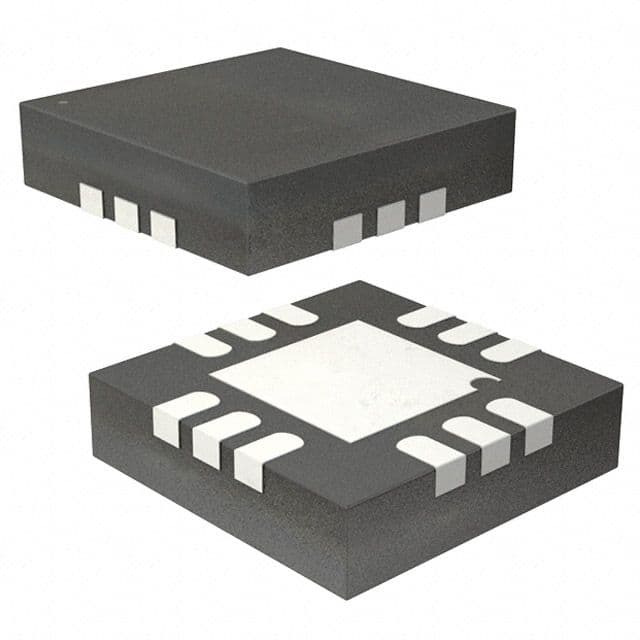

Product Images
