Analog Devices
ADG787BCBZ-REEL
Dual 2-Channel Multiplexer, 145MHz -3db Bandwidth, 5.5V Supply, WLCSP-10
The ADG787BCBZ-REEL is a dual 2-channel multiplexer with a -3db bandwidth of 145MHz. It operates over a temperature range of -40°C to 85°C and has a maximum power dissipation of 5.5uW. The device is packaged in a lead-free WLCSP-10 package and is RoHS compliant. It is designed for use with a 5.5V supply voltage and has a maximum supply current of 1uA. The ADG787BCBZ-REEL is suitable for use in high-frequency applications where a low insertion loss of 0.2dB is required.
PackageBGA
Power5.5uW
Quick Jump:
Technical Specifications
Analog Devices ADG787BCBZ-REEL technical specifications.
General
| -3db Bandwidth | 145MHz |
| Bandwidth | 145MHz |
| Package/Case | BGA |
| Insertion Loss | 0.2dB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5.5uW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 0V |
| Number of Circuits | 2 |
| Number of Switches | 2 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Power Dissipation | 5.5uW |
| RoHS Compliant | Yes |
| Test Frequency | 1MHz |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADG787BCBZ-REEL Datasheet
Download the complete datasheet for Analog Devices ADG787BCBZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

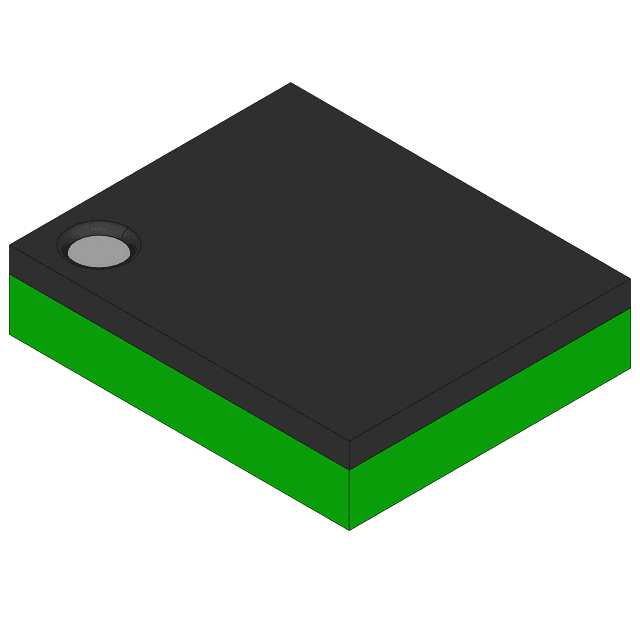

Product Images
