High-performance RF switch operating from 0MHz to 2.5GHz, featuring a 4.5GHz bandwidth and 50 Ohm impedance. This single-pole, single-throw (SPST) switch offers 1.25dB insertion loss and a P1dB of 17dBm, with an IIP3 of 36dBm. Designed for diversity applications, it operates within a 1.65V to 2.75V supply voltage range and is housed in a compact 3mm x 3mm LFCSP-8 package. Suitable for a wide temperature range of -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
Frequency4.5GHz
Quick Jump:
Technical Specifications
Analog Devices ADG902BCPZ-REEL7 technical specifications.
General
Bandwidth
4.5GHz
Contact Plating
Tin, Matte
Frequency
4.5GHz
IIP3
36dBm
Impedance
50R
Lead Free
Contains Lead
Length
3mm
Max Frequency
2.5GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.5uW
Max Supply Voltage
2.75V
Min Supply Voltage
1.65V
Number of Bits
2
Number of Outputs
1
Number of Switches
1
Operating Supply Voltage
2.75V
P1dB
17dBm
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
850um
Throw Configuration
SPST
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADG902BCPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADG902BCPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

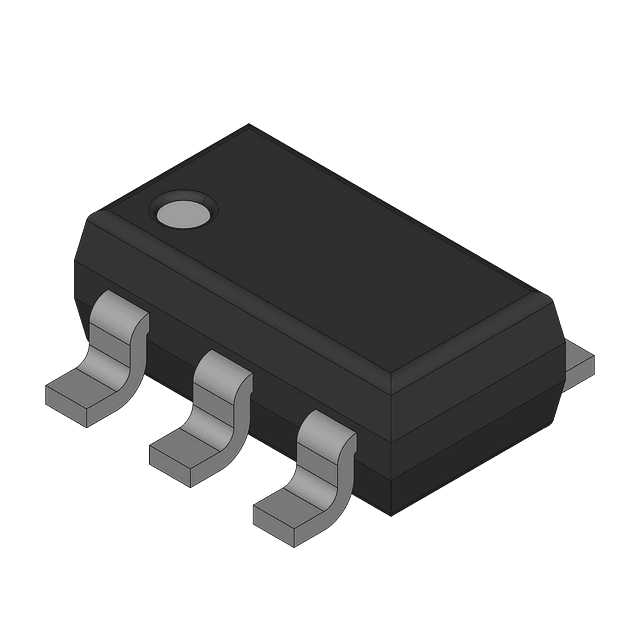

Product Images
