Super Sequencer® and Monitor IC, a power management solution, features 10 monitored inputs and 10 monitored voltages with adjustable reset thresholds from 573mV to 1.375V. This surface mount TQFP package component operates from a 3V to 14.4V supply, drawing a maximum of 6mA, and includes a watchdog timer. It supports a 400kHz frequency and operates within a temperature range of -40°C to 85°C, with overvoltage and undervoltage thresholds set at 8.4V and 6V respectively.
Frequency400kHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1065ASUZ technical specifications.
General
Package/Case
TQFP
Frequency
400kHz
Height
1.05mm
Lead Free
Contains Lead
Length
9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
1.375V
Min Reset Threshold Voltage
573mV
Max Supply Current
6mA
Max Supply Voltage
14.4V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Monitored Inputs
10
Number of Voltages Monitored
10
Operating Supply Current
4.2mA
Overvoltage Threshold
8.4V
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Super Sequencer®
Threshold Voltage
14.4V
Type
Sequencer
Undervoltage Threshold
6V
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM1065ASUZ Datasheet
Download the complete datasheet for Analog Devices ADM1065ASUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

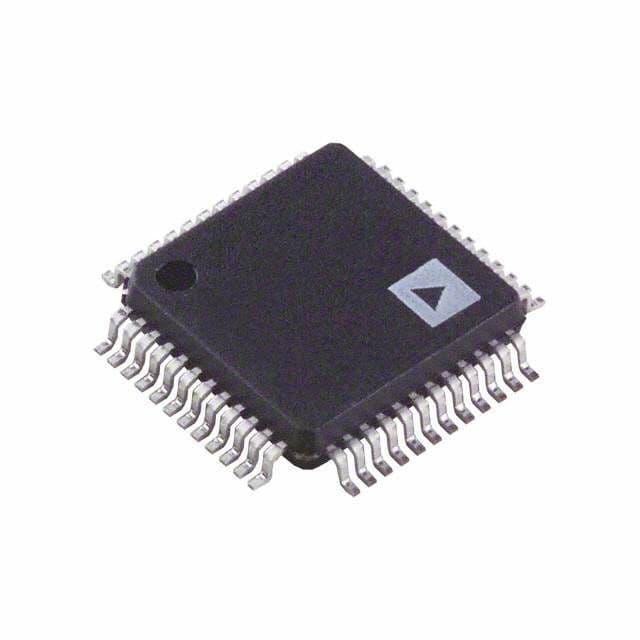

Product Images
