Supervisory circuit, 32-Pin LQFP package, featuring 8 monitored inputs and a watchdog timer. Operates from a 3V to 14.4V supply voltage with an operating current of 4.2mA. Offers reset threshold voltages from 573mV to 1.375V, with overvoltage and undervoltage thresholds at 8.4V and 6V respectively. Includes a 2.048V reference voltage and operates within a -40°C to 85°C temperature range. Surface mountable with tin, matte contact plating.
PackageLQFP
Current4.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM1168ASTZ technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Height
1.4mm
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
1.375V
Min Reset Threshold Voltage
573mV
Max Supply Voltage
14.4V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Monitored Inputs
8
Operating Supply Current
4.2mA
Overvoltage Threshold
8.4V
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
Reference Voltage
2.048V
RoHS Compliant
Yes
Series
Super Sequencer®
Supply Current
4.2mA
Threshold Voltage
14.4V
Undervoltage Threshold
6V
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM1168ASTZ Datasheet
Download the complete datasheet for Analog Devices ADM1168ASTZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

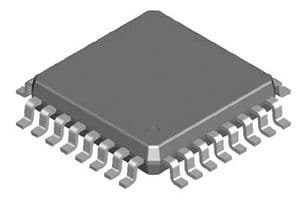

Product Images
