Single-channel RS-232 transceiver with ±15 kV ESD protection. Features a 3.3V operating supply voltage, supporting data rates up to 460Kbps. Includes one driver and one receiver, operating across a temperature range of -40°C to 85°C. Packaged in an LFCSP EP with a 3.15mm width and 3.15mm length. RoHS compliant.
PackageLFCSP EP
Current5mA
Quick Jump:
Technical Specifications
Analog Devices ADM3101EACPZ-250R7 technical specifications.
General
Package/Case
LFCSP EP
Data Rate
460Kbps
Height
0.95mm
Interface
RS-232
Length
3.15mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
5mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
400mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
5mA
Width
3.15mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM3101EACPZ-250R7 Datasheet
Download the complete datasheet for Analog Devices ADM3101EACPZ-250R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

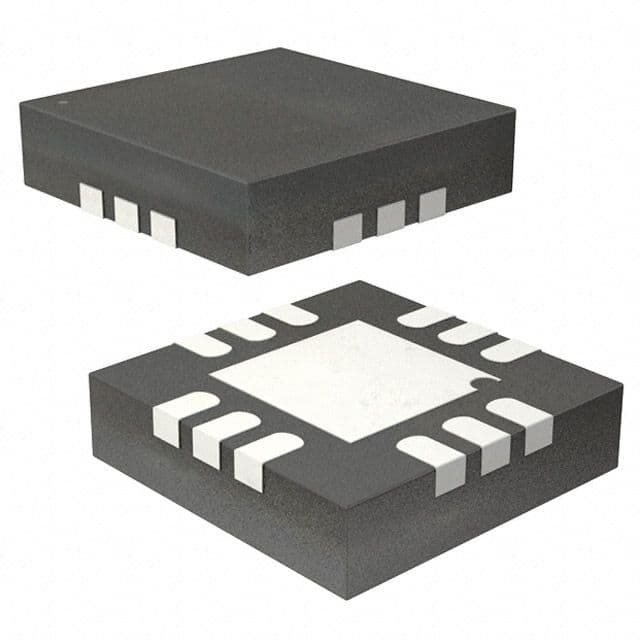

Product Images
