Full duplex RS-485/RS-422 transceiver operating at 10 Mbps. Features a 3.3V supply voltage with low power consumption, drawing a maximum of 2.2mA. Includes one driver and one receiver, with 3-state output type and receiver hysteresis of 50mV. Encased in a SOIC package with tin, matte contact plating, this RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackageSOIC
Current2.2mA
Quick Jump:
Technical Specifications
Analog Devices ADM3491ARZ technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Matte
Data Rate
10Mbps
ESD Protection
No
Height
1.5mm
Interface
RS-422, RS-485
Lead Free
Contains Lead
Length
8.75mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
2.2mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Channels
1
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
1uA
Operating Supply Voltage
3.3V
Output Type
3-STATE
Package Quantity
56
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
50mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
2.2mA
Weight
0.011923oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM3491ARZ Datasheet
Download the complete datasheet for Analog Devices ADM3491ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

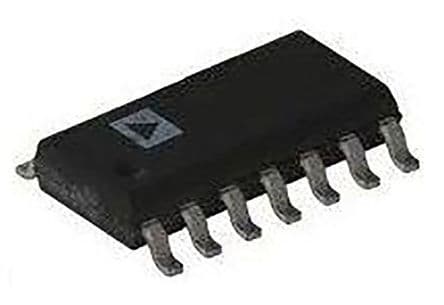

Product Images
