Half-duplex RS-485 line transceiver IC, featuring a PDIP-8 package for through-hole mounting. Operates with a supply voltage of 4.5V to 5.5V, supporting data rates up to 250Kbps. Includes one driver and one receiver, with a maximum power dissipation of 470mW. This RoHS compliant component offers a wide operating temperature range from -40°C to 85°C.
PackagePDIP
Current360uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices ADM483EANZ technical specifications.
General
Package/Case
PDIP
Data Rate
250Kbps
Height
3.43mm
Interface
RS-485
Lead Free
Lead Free
Length
9.27mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
470mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of I/Os
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
2000ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ADM483E
Simplex/Duplex
Half Duplex
Supply Current
360uA
Width
7.24mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM483EANZ Datasheet
Download the complete datasheet for Analog Devices ADM483EANZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

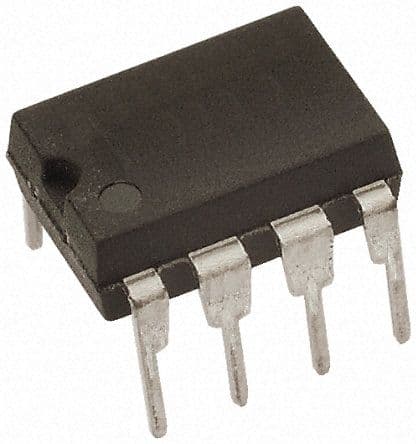

Product Images
