Processor Supervisor IC, 4.63V threshold voltage, operating from 1V to 5.5V supply. Features active-low reset with a 1ms timeout. Maximum supply current is 15µA. Packaged in a 4-pin SOT-143 surface-mount case, supplied on tape and reel.
PackageSOT-143-4
Current15uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6315-46D1ARTRL7 technical specifications.
General
Package/Case
SOT-143-4
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.71V
Min Reset Threshold Voltage
4.55V
Max Supply Current
15uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
15uA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reset
Active Low
Reset Timeout
1ms
RoHS Compliant
No
Supply Current
15uA
Threshold Voltage
4.63V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADM6315-46D1ARTRL7 Datasheet
Download the complete datasheet for Analog Devices ADM6315-46D1ARTRL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

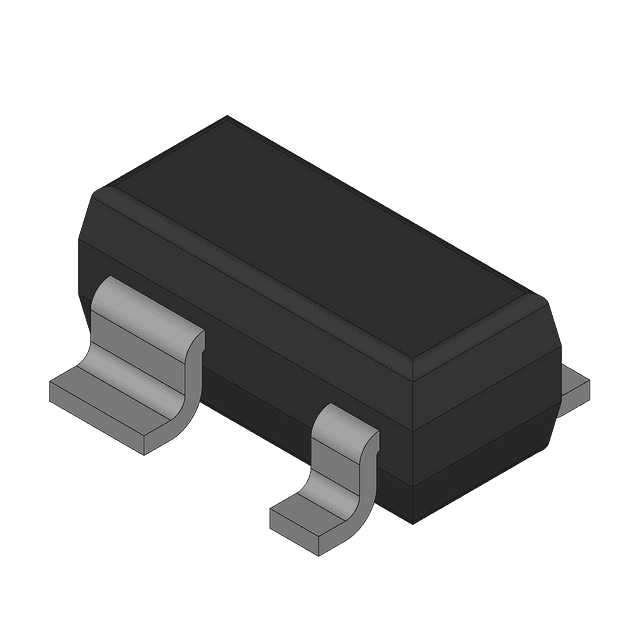

Product Images
