Surface mount microprocessor supervisory circuit featuring a single monitored voltage with a reset threshold range of 4.31V to 4.45V. This power management IC operates from 1V to 5.5V with a typical supply current of 35uA, peaking at 60uA. The active low, push-pull output provides a reset timeout of 140ms. Housed in a compact 1.35mm x 2.2mm x 1mm SC package, it supports a maximum operating temperature of 125°C.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6711MAKSZ-REEL7 technical specifications.
General
Package/Case
SC
Height
1mm
Lead Free
Contains Lead
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.45V
Min Reset Threshold Voltage
4.31V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
35uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
4.38V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM6711MAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM6711MAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

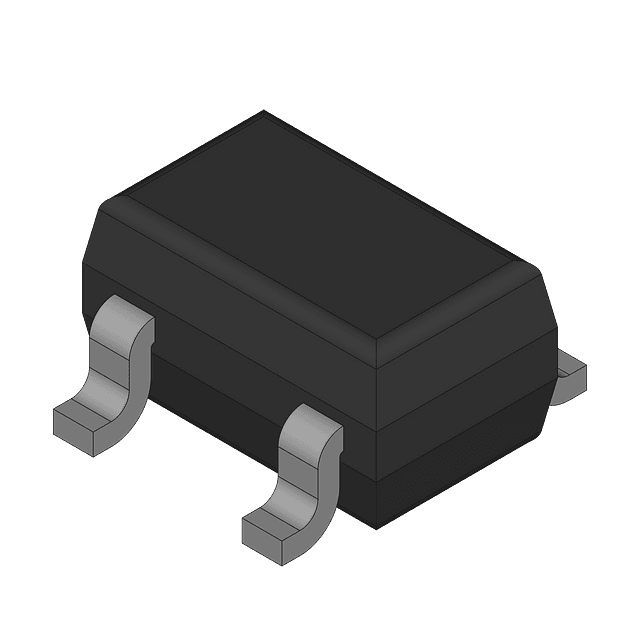

Product Images
