Surface mount microprocessor supervisory circuit featuring active-low reset and a reset delay time of 640ms. Monitors a single voltage with a threshold voltage of 2.93V, an overvoltage threshold of 2.96V, and an undervoltage threshold of 2.89V. Operates within a supply voltage range of 1V to 5.5V, drawing a maximum supply current of 60uA. Housed in a compact 4-lead SC70 package with dimensions of 2.2mm (L) x 1.35mm (W) x 1mm (H), suitable for tape and reel packaging.
PackageSC
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM6713SAKSZ-REEL7 technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| Lead Free | Contains Lead |
| Length | 2.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.96V |
| Min Reset Threshold Voltage | 2.89V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 35uA |
| Overvoltage Threshold | 2.96V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Delay Time | 640ms |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.89V |
| Watchdog Timer | No |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADM6713SAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM6713SAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

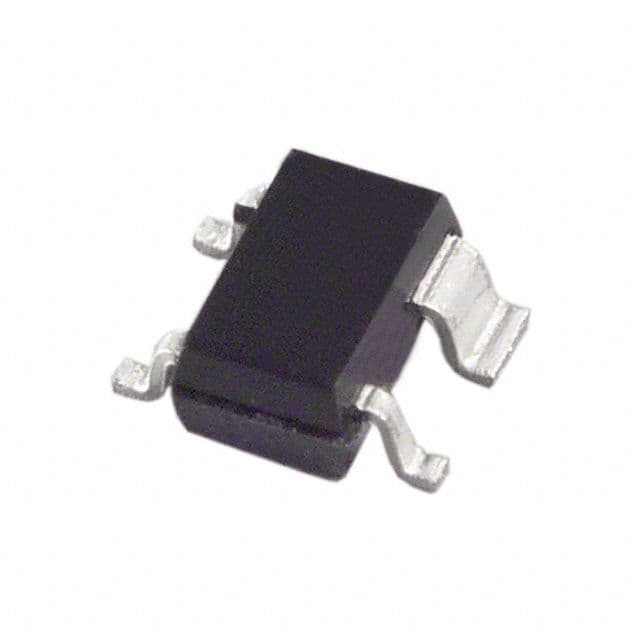

Product Images
