ADM812TARTZ-REEL7
Reset IC, 3.08V Threshold, 5.5V Max, 10uA Supply, SOT, Push-Pull Output
Microprocessor supervisory circuit featuring a logic-high RESET output. This surface-mount component monitors a single voltage with a threshold range of 3.03V to 3.14V. It operates from a 1V to 5.5V supply, drawing a maximum of 10µA supply current. The device offers a reset delay time of 560ms and a reset timeout of 140ms. Packaged in a 4-lead SOT-143, it is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageSOT
Current10uA
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Analog Devices ADM812TARTZ-REEL7 technical specifications.
General
Package/Case
SOT
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
200mW
Max Reset Threshold Voltage
3.14V
Min Reset Threshold Voltage
3.03V
Max Supply Current
10uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
15uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Overvoltage Threshold
3.14V
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active High
Reset Delay Time
560ms
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
10uA
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.03V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM812TARTZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADM812TARTZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

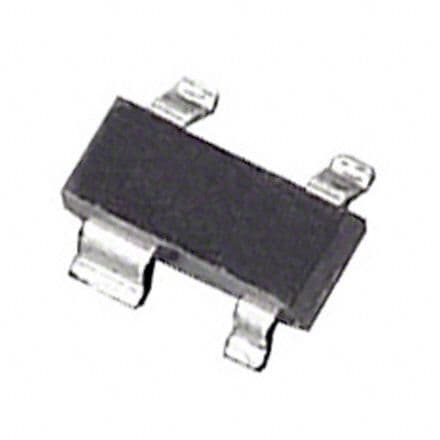

Product Images
