PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADM8616YCYAKSZ-RL7 technical specifications.
General
Package/Case
SC
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.25V
Min Reset Threshold Voltage
2.12V
Max Supply Current
20uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
20uA
Output
TOTEM-POLE
Output Type
PUSH-PULL
Packaging
Tape and Reel
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Threshold Voltage
2.19V
Type
Simple Reset/Power-On Reset
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADM8616YCYAKSZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADM8616YCYAKSZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

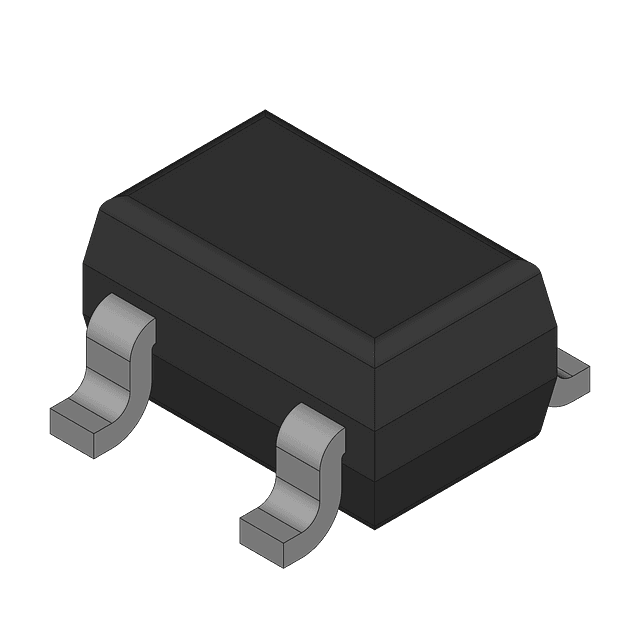

Product Images
