PackageLFCSP EP
Current215mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Analog Devices ADN2811ACP-CML technical specifications.
General
-3db Bandwidth
1.9GHz
Package/Case
LFCSP EP
Data Rate
2.7Gbps
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Elements
1
Operating Supply Current
214mA
Operating Supply Voltage
3.3V
Packaging
Tray
Power Dissipation
500mW
RoHS Compliant
No
Supply Current
215mA
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADN2811ACP-CML Datasheet
Download the complete datasheet for Analog Devices ADN2811ACP-CML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

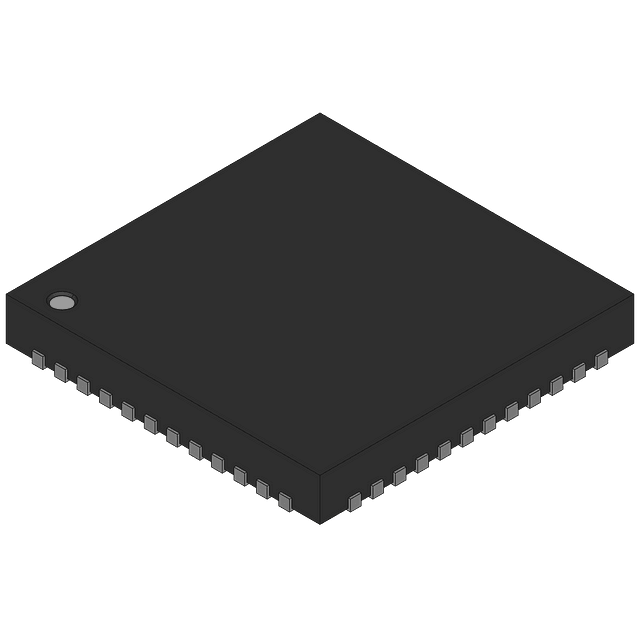

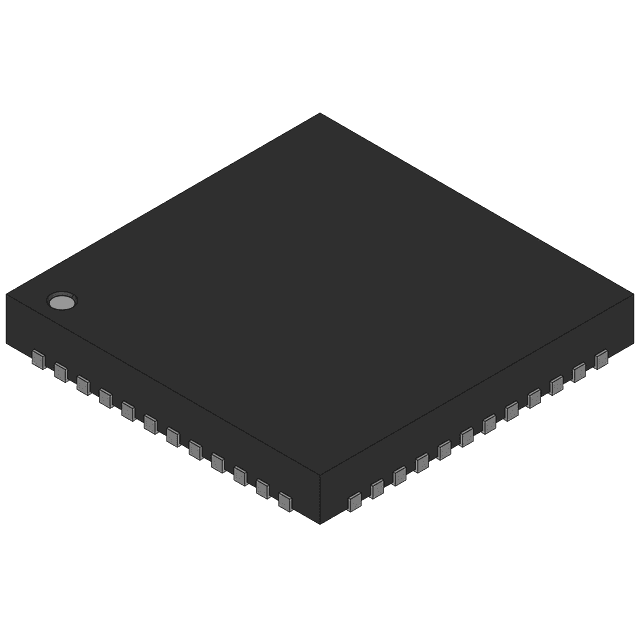

Product Images
