150mA CMOS linear voltage regulator with a 3V fixed output voltage and 2% accuracy. Features a low 21µA quiescent current and 90mV dropout voltage. Operates from a 2.3V to 5.5V input, delivering up to 150mA. Available in 5-lead TSOT or 4-ball WLCSP packages, supplied on tape and reel.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP121-ACBZ30R7 technical specifications.
General
Accuracy
2%
Dropout Voltage
90mV
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
3.3V
Min Output Voltage
2.2V
Max Supply Current
40uA
Mount
Surface Mount
Nominal Output Voltage
3V
Nominal Supply Current
40uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
21uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
800mV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP121-ACBZ30R7 Datasheet
Download the complete datasheet for Analog Devices ADP121-ACBZ30R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

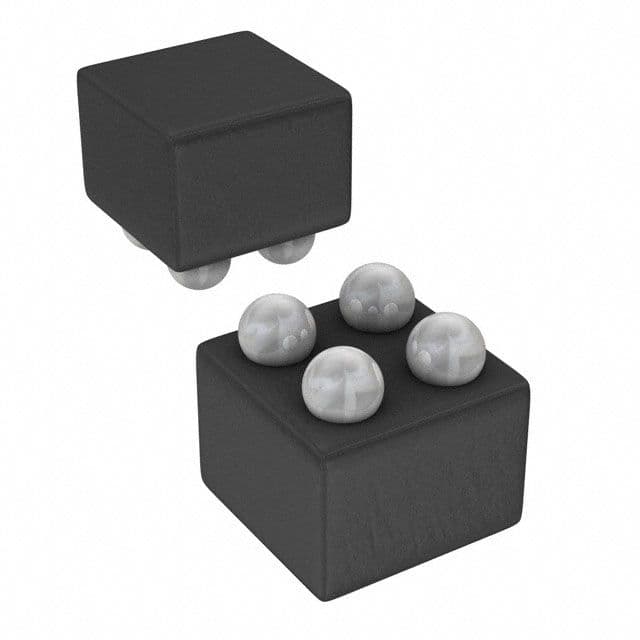

Product Images
