CMOS linear voltage regulator, 200mA output current, fixed 3.3V output voltage. Features ultralow noise, 1% accuracy, and a 135mV dropout voltage. Operates from 2.2V to 5.5V input, with a maximum operating temperature of 125°C. Packaged in BGA with tape and reel packaging.
PackageBGA
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP151ACBZ-3.3-R7 technical specifications.
General
Accuracy
1%
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Dropout Voltage
135mV
Lead Free
Contains Lead
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Supply Current
350uA
Nominal Output Voltage
3.3V
Nominal Supply Current
265uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
265uA
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
20uA
Reach SVHC Compliant
No
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADP151ACBZ-3.3-R7 Datasheet
Download the complete datasheet for Analog Devices ADP151ACBZ-3.3-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

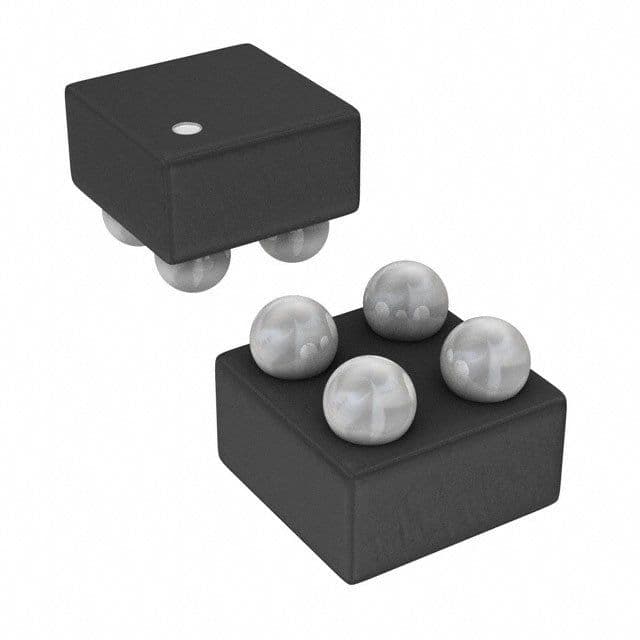

Product Images
