CMOS linear voltage regulator providing a fixed 1.8V output with 200mA maximum output current. Features ultralow noise, 1% accuracy, and a low dropout voltage of 150mV. Operates from a 2.2V to 5.5V input voltage range with a maximum supply current of 350µA. Packaged in a compact TSOT case with dimensions of 2.9mm x 1.6mm x 0.9mm. Offers a Power Supply Rejection Ratio (PSRR) of 70dB and operates across a temperature range of -40°C to 125°C.
PackageTSOT
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP151AUJZ-1.8-R7 technical specifications.
General
Accuracy
1%
Package/Case
TSOT
Dropout Voltage
150mV
Height
0.9mm
Lead Free
Contains Lead
Length
2.9mm
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Supply Current
350uA
Nominal Output Voltage
1.8V
Nominal Supply Current
265uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
265uA
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
1.8V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
20uA
Reach SVHC Compliant
No
Series
ADP151
Width
1.6mm
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADP151AUJZ-1.8-R7 Datasheet
Download the complete datasheet for Analog Devices ADP151AUJZ-1.8-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

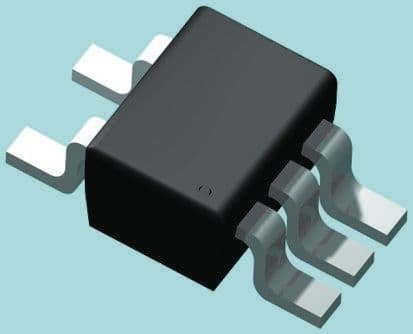

Product Images
