CMOS linear voltage regulator offering 150mA output current with a fixed 3V output voltage. Features ultra-low quiescent current of 1.25µA and a maximum supply current of 42µA. Dropout voltage is 105mV, with accuracy within 2%. Operates from 2.2V to 5.5V input voltage and supports a wide temperature range of -40°C to 125°C. Designed for surface mount applications with copper, tin, and silver contact plating.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP160ACBZ-3.0-R7 technical specifications.
General
Accuracy
2%
Contact Plating
Copper, Tin, Silver
Dropout Voltage
105mV
Lead Free
Contains Lead
Min Current Limit
220mA
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
4.2V
Min Output Voltage
1.2V
Max Supply Current
42uA
Mount
Surface Mount
Nominal Supply Current
42uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
42uA
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
1.25uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP160ACBZ-3.0-R7 Datasheet
Download the complete datasheet for Analog Devices ADP160ACBZ-3.0-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

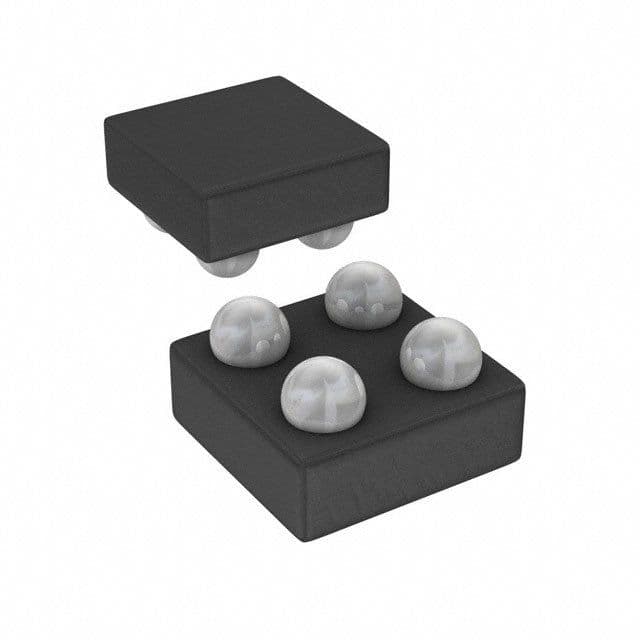

Product Images
