CMOS linear voltage regulator offering 1.8V fixed output voltage and 150mA maximum output current. Features ultralow quiescent current of 1.25µA and a nominal supply current of 42µA. Dropout voltage is 195mV with a minimum input voltage of 2.2V and a maximum input voltage of 5.5V. Accuracy is 2%, with a power supply rejection ratio (PSRR) of 72dB. Designed for surface mount applications, this positive output regulator operates from -40°C to 125°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP162ACBZ-1.8-R7 technical specifications.
General
Accuracy
2%
Contact Plating
Copper, Tin, Silver
Dropout Voltage
195mV
Lead Free
Contains Lead
Min Current Limit
220mA
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
1.8V
Max Supply Current
42uA
Mount
Surface Mount
Nominal Supply Current
42uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
42uA
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
72dB
Quiescent Current
1.25uA
RoHS Compliant
Yes
Weight
0.002413oz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP162ACBZ-1.8-R7 Datasheet
Download the complete datasheet for Analog Devices ADP162ACBZ-1.8-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

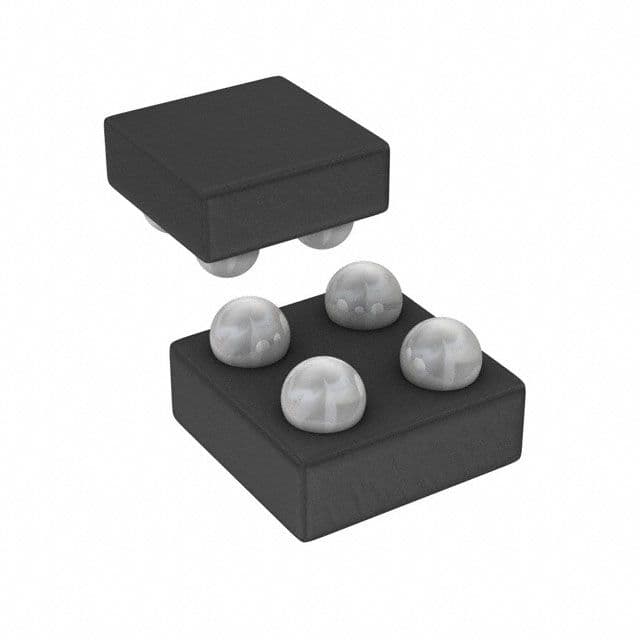

Product Images
