150mA CMOS linear voltage regulator with a fixed 2.1V output. Features ultralow quiescent current of 42µA, dropout voltage of 195mV, and accuracy of 2%. Operates from a 2.2V to 5.5V input voltage range, with a maximum output current of 150mA. This positive polarity, single-output regulator is surface mountable and offers a Power Supply Rejection Ratio (PSRR) of 72dB. Designed for operation between -40°C and 125°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP162ACBZ-2.1-R7 technical specifications.
General
Accuracy
2%
Contact Plating
Copper, Tin, Silver
Dropout Voltage
195mV
Lead Free
Contains Lead
Min Current Limit
220mA
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Supply Current
42uA
Mount
Surface Mount
Nominal Supply Current
42uA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
42uA
Output Current
150mA
Output Type
Fixed
Output Voltage
2.1V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
72dB
Quiescent Current
0mA
RoHS Compliant
Yes
Weight
0.002413oz
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP162ACBZ-2.1-R7 Datasheet
Download the complete datasheet for Analog Devices ADP162ACBZ-2.1-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

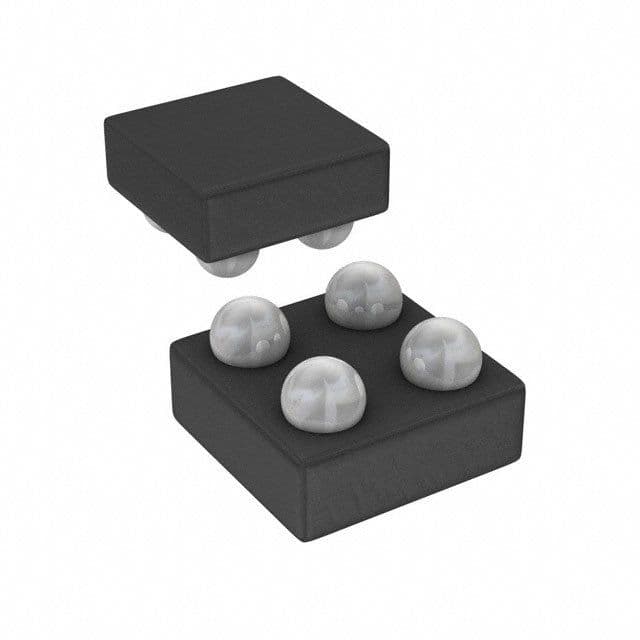

Product Images
