Analog Devices
ADP1706ACPZ-0.75R7
0.75V FIXED POSITIVE LDO REGULATOR, QCC8, 3 X 3 MM, ROHS COMPLIANT, LFCSP-8
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1706ACPZ-0.75R7 technical specifications.
General
Accuracy
1.5%
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Min Current Limit
1.1A
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
750mV
Max Supply Current
1.55mA
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
750mV
Package Quantity
1500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
390uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1706ACPZ-0.75R7 Datasheet
Download the complete datasheet for Analog Devices ADP1706ACPZ-0.75R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

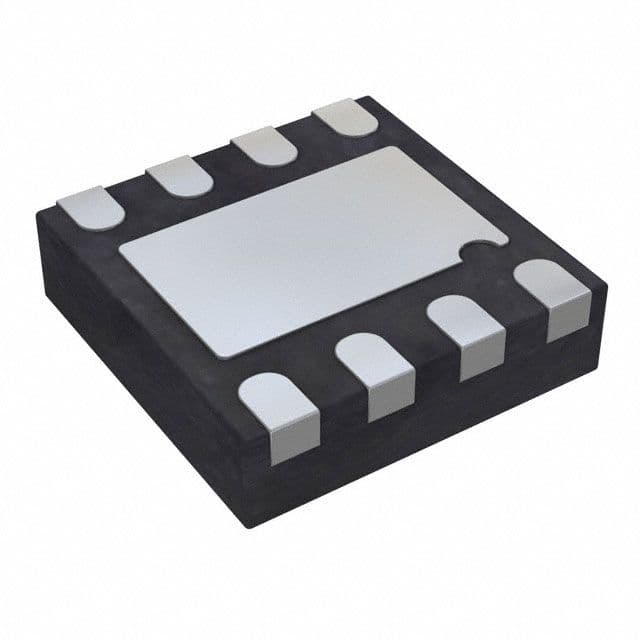

Product Images
