150mA CMOS linear voltage regulator with a fixed 1.2V output. Features 1% accuracy, 180mV dropout voltage, and a maximum input voltage of 5.5V. Operates across a -40°C to 125°C temperature range and offers a 58dB PSRR. Packaged in a compact TSOT case, this positive output regulator is RoHS compliant.
PackageTSOT
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1710AUJZ-1.2-R7 technical specifications.
General
Accuracy
1%
Package/Case
TSOT
Dropout Voltage
180mV
Height
0.9mm
Lead Free
Contains Lead
Length
2.9mm
Min Current Limit
180mA
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
5V
Min Output Voltage
800mV
Max Supply Current
1.3mA
Nominal Output Voltage
1.2V
Nominal Supply Current
1.3mA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1.3mA
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.2V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
50uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1710AUJZ-1.2-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1710AUJZ-1.2-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

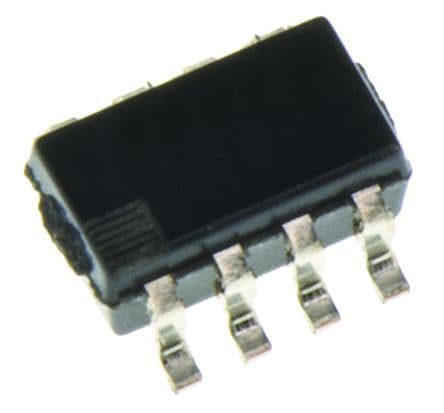

Product Images
