2A, positive, fixed output linear voltage regulator with a 1.5V nominal output voltage and 1% output voltage accuracy. Features a low 160mV dropout voltage, a maximum input voltage of 3.6V, and a minimum input voltage of 1.6V. Operates with a 1.8mA supply current and offers a 70dB PSRR. Housed in an LFCSP EP package, this RoHS compliant component supports an operating temperature range of -40°C to 125°C.
PackageLFCSP EP
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1740ACPZ-1.5-R7 technical specifications.
General
Accuracy
1%
Package/Case
LFCSP EP
Dropout Voltage
160mV
Lead Free
Contains Lead
Min Current Limit
2.4A
Max Input Voltage
3.6V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Supply Current
1.8mA
Nominal Output Voltage
1.5V
Nominal Supply Current
1.8mA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1.8mA
Output Current
2A
Output Type
Fixed
Output Voltage
1.5V
Output Voltage Accuracy
1%
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1740ACPZ-1.5-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1740ACPZ-1.5-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

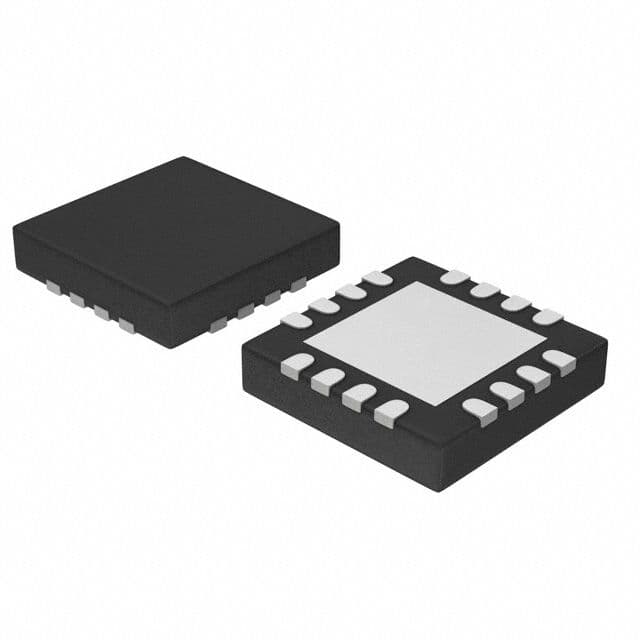

Product Images
