1.8V fixed output linear voltage regulator, delivering up to 2A output current with a low 160mV dropout voltage. Features 1% output accuracy, 70dB PSRR, and operates from a 1.6V to 3.6V input voltage range. This positive polarity regulator has a maximum supply current of 1.8mA and is available in a 4.1mm x 4.1mm x 0.75mm package. Suitable for operation between -40°C and 125°C.
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1740ACPZ-1.8-R7 technical specifications.
General
Accuracy
1%
Dropout Voltage
160mV
Height
0.75mm
Lead Free
Contains Lead
Length
4.1mm
Min Current Limit
2.4A
Max Input Voltage
3.6V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Supply Current
1.8mA
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1.8mA
Output Current
2A
Output Type
Fixed
Output Voltage
1.8V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
500mV
RoHS Compliant
Yes
Width
4.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1740ACPZ-1.8-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1740ACPZ-1.8-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

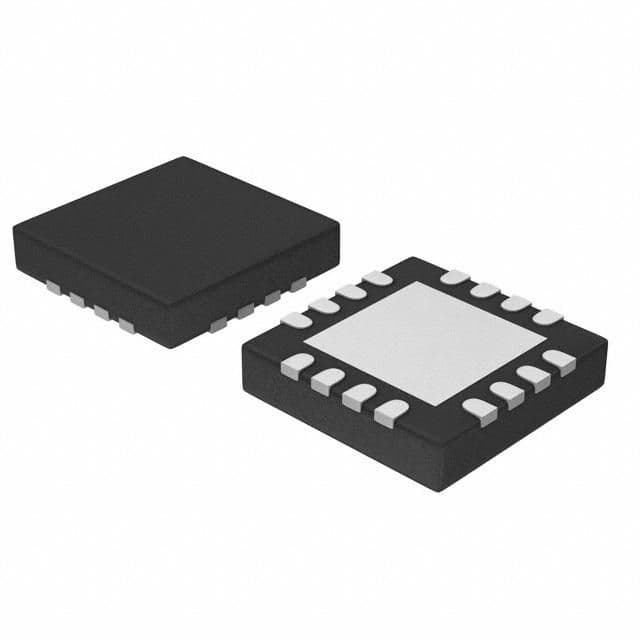

Product Images
