1.2A Low-Input Voltage LDO Linear Regulator with a fixed 1.1V output voltage. Features a 1.5% accuracy, 1.2A maximum output current, and a wide input voltage range from 1.6V to 3.6V. This positive polarity regulator offers a 65dB Power Supply Rejection Ratio (PSRR) and operates within a temperature range of -40°C to 125°C. Packaged in QFN with tin, matte contact plating, it is RoHS compliant and supplied on tape and reel.
PackageQFN
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1754ACPZ-1.1-R7 technical specifications.
General
Accuracy
1.5%
Package/Case
QFN
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Min Current Limit
1.5A
Max Input Voltage
3.6V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
2.5V
Min Output Voltage
750mV
Max Supply Current
1.4mA
Nominal Supply Current
1.4mA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1.4mA
Output Current
1.2A
Output Type
Fixed
Output Voltage
1.1V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1754ACPZ-1.1-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1754ACPZ-1.1-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

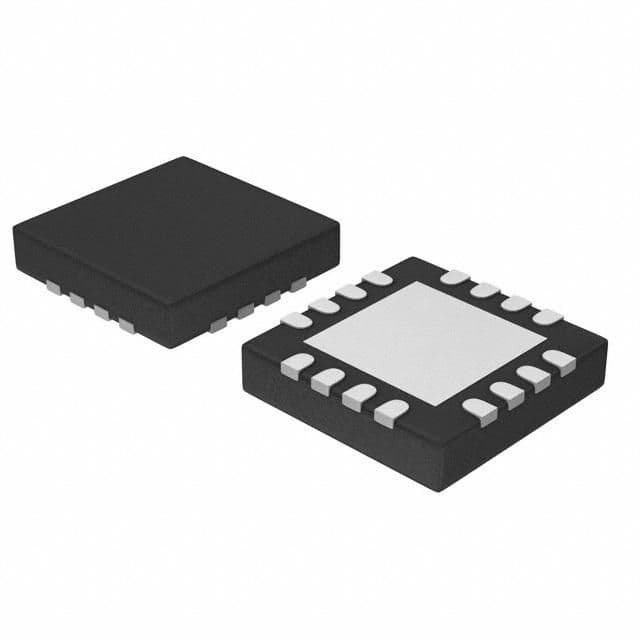

Product Images
