1.2A Low-Vin LDO Linear Regulator with a fixed 2.5V output voltage. Features a maximum input voltage of 3.6V and a minimum of 1.6V, delivering up to 1.2A output current. Offers 1.5% accuracy and a Power Supply Rejection Ratio (PSRR) of 65dB. Packaged in an LFCSP EP with tin, matte contact plating, measuring 4mm x 4mm x 0.83mm. Operates across a temperature range of -40°C to 125°C with a quiescent current of 800µA.
PackageLFCSP EP
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1754ACPZ-2.5-R7 technical specifications.
General
Accuracy
1.5%
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Height
0.83mm
Lead Free
Contains Lead
Length
4mm
Max Input Voltage
3.6V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
2.5V
Min Output Voltage
750mV
Max Supply Current
1.4mA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1.4mA
Output Configuration
Positive
Output Current
1.2A
Output Type
Fixed
Output Voltage
2.5V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
800uA
RoHS Compliant
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1754ACPZ-2.5-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1754ACPZ-2.5-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

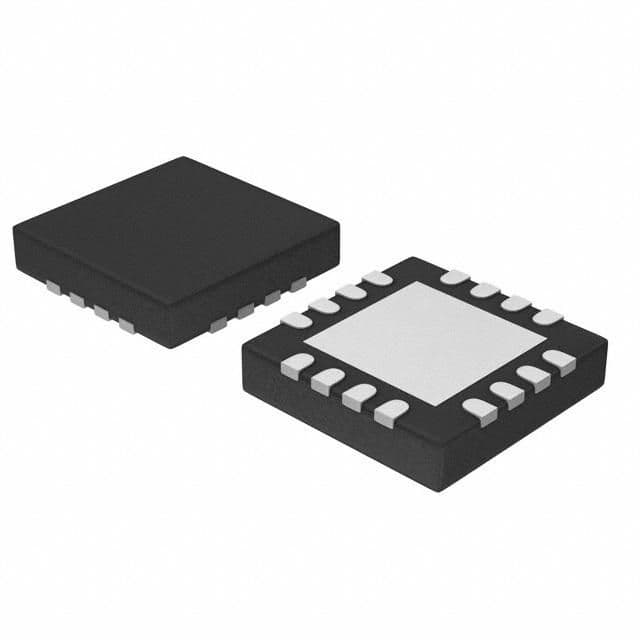

Product Images
