1.2A adjustable output LDO linear regulator with a 105mV dropout voltage. Features a 1.6V to 3.6V input voltage range and a 750mV to 3V adjustable output voltage. Offers 2% output voltage accuracy and a 1.5A minimum current limit. Operates from -40°C to 125°C in a 4.1mm x 4.1mm x 0.8mm LFCSP EP package.
PackageLFCSP EP
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices ADP1755ACPZ-R7 technical specifications.
General
Accuracy
2%
Package/Case
LFCSP EP
Dropout Voltage
105mV
Height
0.8mm
Lead Free
Contains Lead
Length
4.1mm
Min Current Limit
1.5A
Max Input Voltage
3.6V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
3V
Min Output Voltage
750mV
Max Supply Current
1.4mA
Nominal Supply Current
1.4mA
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
1.4mA
Output Current
1.2A
Output Type
Adjustable
Output Voltage
3V
Output Voltage Accuracy
2%
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
500mV
RoHS Compliant
Yes
Width
4.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1755ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1755ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

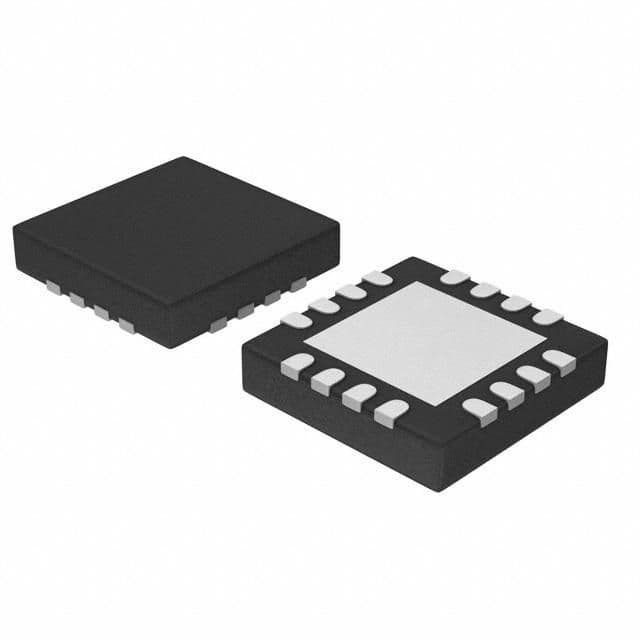

Product Images
