Synchronous buck controller featuring constant on-time and valley current mode operation. This surface mountable integrated circuit supports a wide input voltage range from 2.95V to 20V, delivering a positive output voltage adjustable from 600mV up to 18V. With a maximum output current capability of 30A and a 1-phase, 1-output configuration, it operates efficiently across a temperature range of -40°C to 125°C. The LFCSP EP package with tin, matte contact plating ensures reliable performance.
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP1878ACPZ-0.3-R7 technical specifications.
General
Package/Case
LFCSP EP
Clock Sync
No
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Max Duty Cycle
84%
Max Input Voltage
20V
Min Input Voltage
2.95V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
30A
Max Output Voltage
18V
Min Output Voltage
600mV
Max Supply Voltage
20V
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of Output Phases
1
Number of Outputs
1
Operating Supply Current
1.1uA
Output Configuration
Positive
Output Voltage
600mV
Package Quantity
1500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP1878ACPZ-0.3-R7 Datasheet
Download the complete datasheet for Analog Devices ADP1878ACPZ-0.3-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

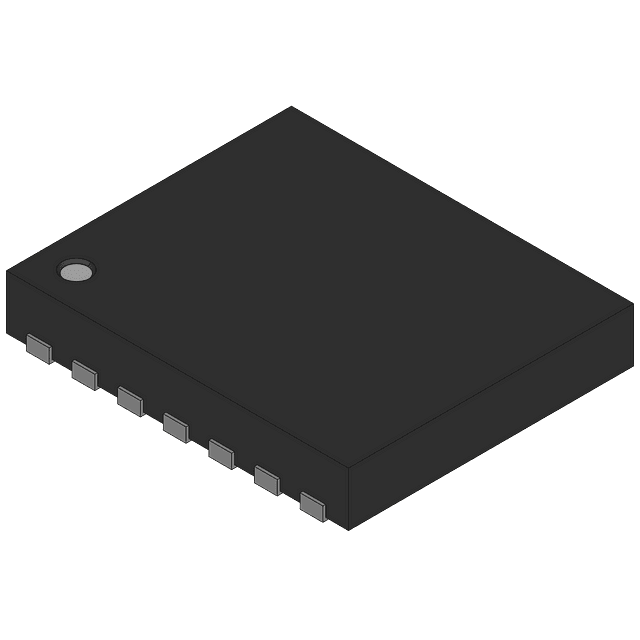

Product Images
