2 Amp Synchronous Step-Down DC-to-DC Converter, featuring a fixed 3.3V output voltage and a maximum output current of 2A. Operates with an input voltage range of 2.7V to 5.5V, achieving up to 97% efficiency. This surface mount component is housed in a VQFN package, suitable for operation across a wide temperature range from -40°C to 125°C. Includes synchronous rectification and a nominal supply current of 30µA.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADP2107ACPZ-3.3-R7 technical specifications.
General
Package/Case
VQFN
Efficiency
97%
Height
25mm
Lead Free
Contains Lead
Length
100mm
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
3.3V
Min Output Voltage
800mV
Mount
Surface Mount
Nominal Output Voltage
3.3V
Nominal Supply Current
30uA
Number of Outputs
1
Operating Supply Current
30uA
Output Configuration
Positive
Output Current
2A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADP2107ACPZ-3.3-R7 Datasheet
Download the complete datasheet for Analog Devices ADP2107ACPZ-3.3-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

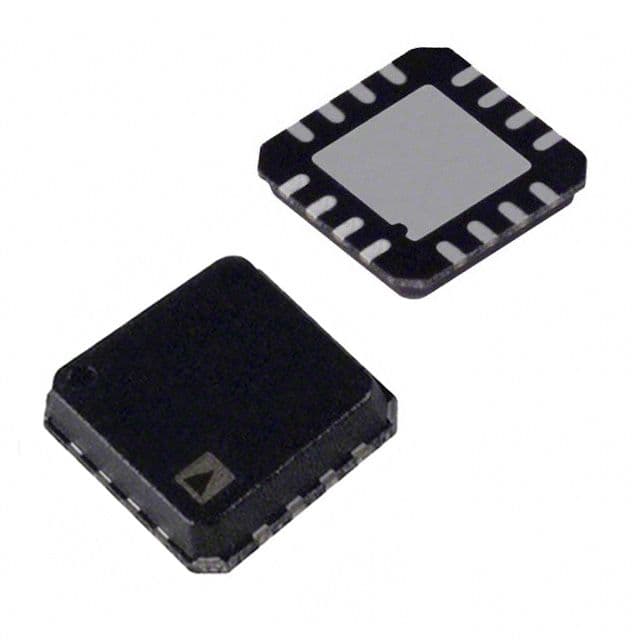

Product Images
